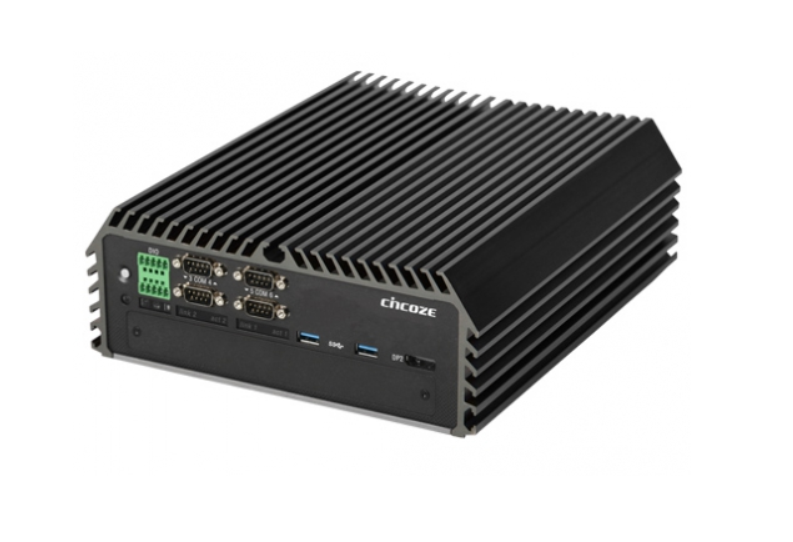

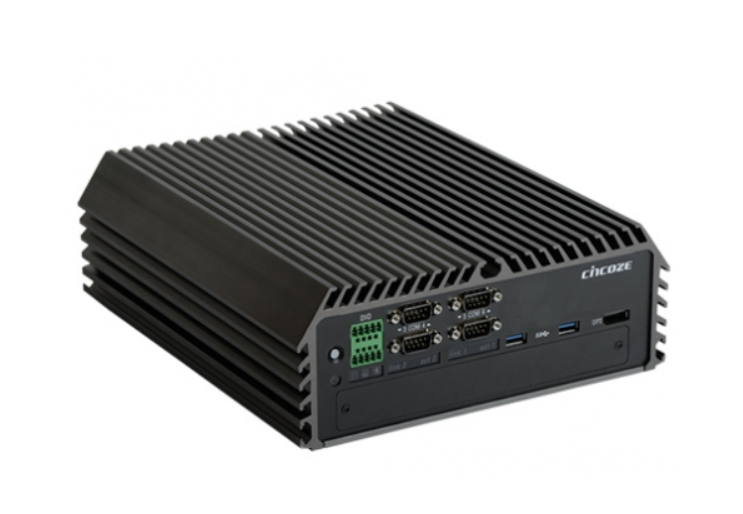

DS-1100
- Supports 6th-Gen Intel Core i3 / i5 / i7 Socket-type CPU (LGA1151)
- 2x DDR4 SO-DIMM Socket, 2,133MHz, Supports Up to 32 GB
- Triple Independent Display (DVI-I, DP, DP/HDMI)
- 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
- 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
- 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
- Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
- Wide Operating Temperature (-40°C to 70°C)
- EN50155 / EN50121-3-2 Certified for Railway Application
产品详情
| Model Name | DS-1100 | |
| System | Processor |
Intel Core i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP) Intel Core i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP) Intel Core i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP) Intel Pentium Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP) Intel Celeron Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP) Intel Core i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP) Intel Core i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP) Intel Core i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP) Intel Pentium Processor G4400 (3M Cache, 3.30 GHz, 54W TDP) Intel Celeron Processor G3900 (2M Cache, 2.80 GHz, 51W TDP) |
| Chipset | Intel Q170 | |
| Memory | 2x DDR4 2133 MHz SO-DIMM, Up to 32 GB (Un-buffered and Non-ECC) | |
| Graphics |
．Integrated Intel HD Graphics ．Three Independent Display |
|
| Audio | Realtek ALC888-GR, High Definition Audio | |
| BIOS | AMI 16 Mbit SPI BIOS | |

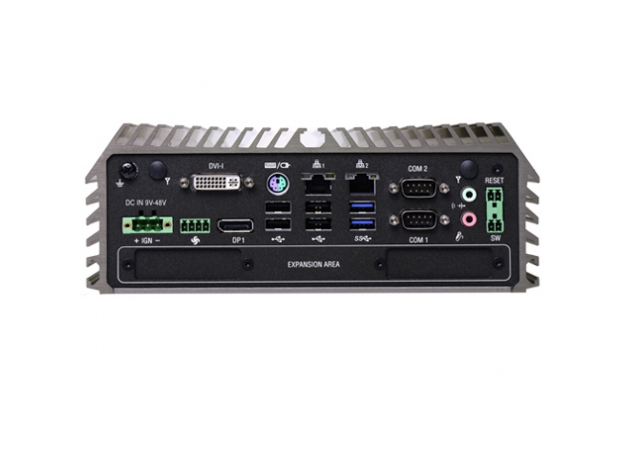

| I/O Interface | DVI | 1x DVI-I connector, Up to 1920x1080@60Hz |
| DP | 1x DP connector, Up to 3840 x 2160 | |
| DP/HDMI | 1x DP/HDMI connector, Up to 3840 x 2160 | |
| LAN |
2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219LM GbE2: Intel I210AT Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE Optional Module ．4x 10/100/1000 Mbps, RJ45 Port ．4x 10/100/1000 Mbps, M12 Port |
|
| PoE+ |
Optional Module ．4x PoE+, Individual port 25.5W, RJ45 Port ．4x PoE+, Individual port 25.5W, M12 Port |
|
| Serial Port |

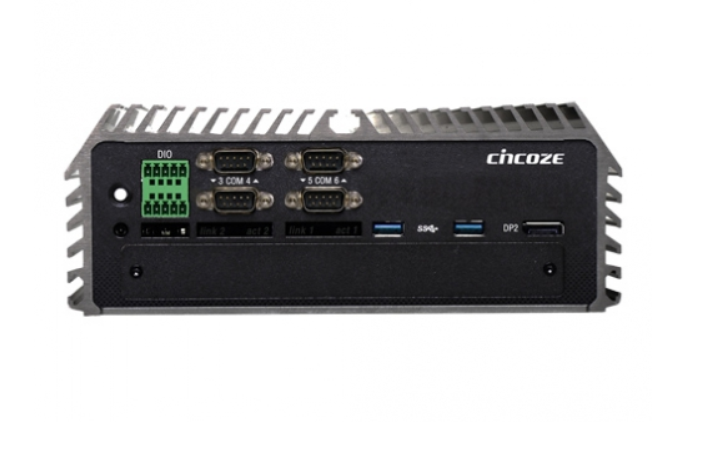

2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module ．4x RS-232/422/485, DB9 Connector ．4x Electrical Isolated RS-232/422/485, DB9 Connector |
|
| USB |
．6x USB 3.0, Type-A ．2x USB 2.0, Type-A |
|
| PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
| Optical Isolated DIO |
Optional Module ．8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Storage | SSD/HDD |
2x 2.5" SATA HDD/SSD bay (Gen3) One Internal, One Front Accessable Support RAID 0/1, Hot Swap |
| mSATA | 3x mSATA (Shared by Mini-PCIe Socket) (Gen2) | |
| Expansion | PCI/ PCIe | - |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
| CMI (Combine Multiple I/O) Interface | 2x CMI Interface for CMI Modules | |
| Mini PCI Express |
3x Full-size Mini PCIe Supports Wireless & I/O Expansion |
|
| Universal I/O Bracket | 2x Universal I/O Bracket | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing |
Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch |
|
| Super Cap | Super Cap integrated for CMOS Battery Maintenance-free | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter |
Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 227 x 261 x 88 mm |
| Weight Information | 4.7 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge | 3000W | |
| Operating System | Windows |
Windows 10 Windows 8.1 Windows 7 |
| Linux | Kernel 4.4 | |
| Environment | Operating Temperature |
i7-6700TE, i5-6500TE, i3-6100TE, G4400TE, G3900TE (35W TDP): -40°C to 70°C i7-6700, i5-6500, i3-6100, G4400, G3900 (51~65W TDP): -40°C to 50°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 with Extended Temperature Peripherals; Ambient with Air Flow) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 40°C @ 95% RH (non-Condensing) | |
| Shock |
Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
| Vibration |
Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
| EMC | CE, FCC Class A | |
| Railway | EN50155, EN50121-3-2 | |
