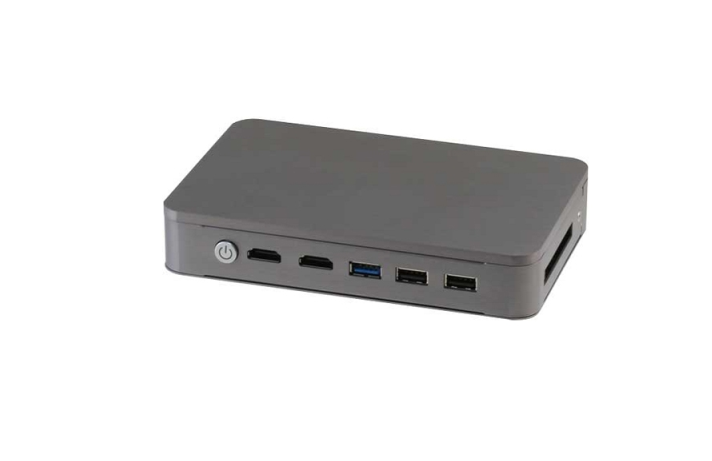

BOXER-6404

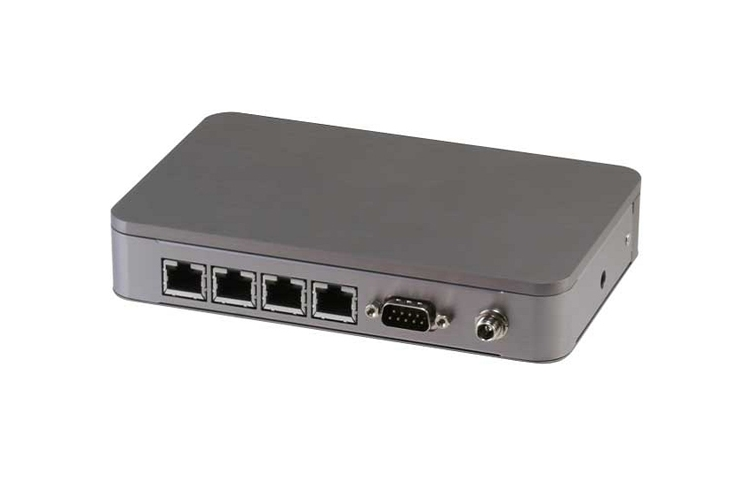

入门级BOXER-6404采用了专门针对其预期应用而设计的流线外形。所配备的4个LAN端口让它不仅可以充当小型网安平台，还可以用于机器视觉应用。
此外，这款PC的尺寸只有166 x 106.6 x 30毫米，并且经测试可以在-20 ~ 60°C的工作温度下运行，是工业自动化设备的最佳选择。
产品详情
| SYSTEM | |
| CPU |
Intel? Celeron? J1900, 2.0 GHz Intel? Celeron? N2807, 1.58GHz |
| CHIPSET | Intel? System on Chip |
| SYSTEM MEMORY | DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807) |
| DISPLAY INTERFACE | HDMI |
| STORAGE DEVICE | CFast? |
| ETHERNET | Intel? I211, 10/100/1000Base-TX x 4 |
| I/O |
RS-232 x 1 USB 2.0 x 2 USB 3.0 x 1 HDMI x 2 LAN x 4 CFast slot x 1 Antenna holes x 1 Power button Power input |
| EXPANSION | Full-size Mini-Card (USB interface only) x 1 |
| INDICATOR | Power LED on power button |
| OS SUPPORT | Windows? 10, Windows? 8.1, Windows? 7, Windows?Embedded 8, Windows? Embedded 7, Linux Federa |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V with lockable DC jack |
| MECHANICAL | |
| MOUNTING |
VESA (Mounting kit is optional) DIN rail (Mounting kit is optional) |
| DIMENSIONS (W X H X D) | 6.53" x 4.20" x 1.18" (166 mm x 106.6 mm x 30 mm) |
| GROSS WEIGHT | 2.9 lb (1.3 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE |
-30°C ~ 65°C with wide temperature CFast? card (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) |
| STORAGE TEMPERATURE | -30°C ~ 80°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation –CFast? card |
| CERTIFICATION | CE/FCC class A |
